Luggar > 4U Wall Rack Cabinet

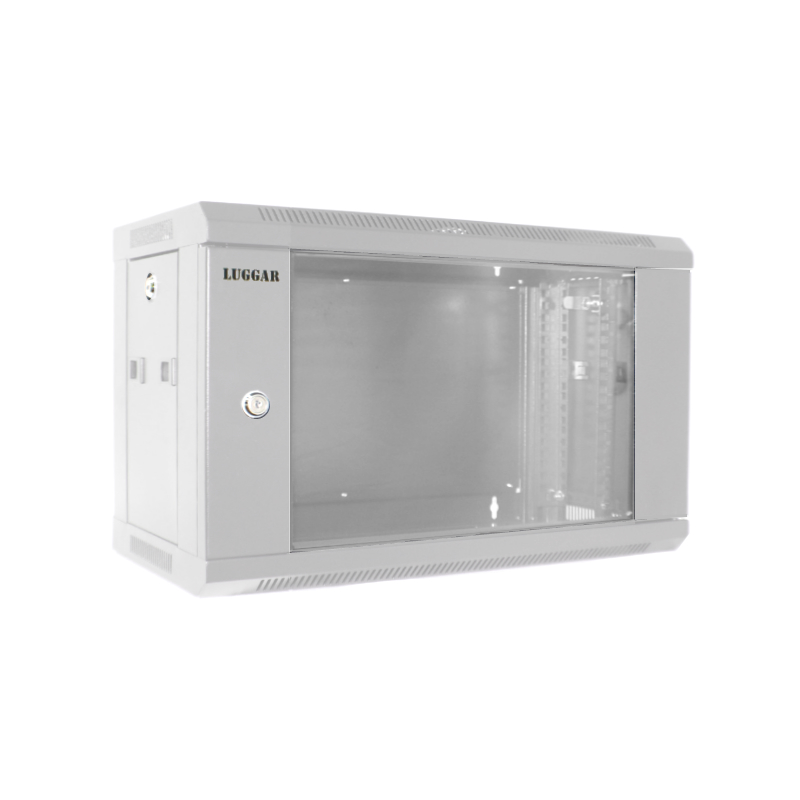

4U Wall Rack Cabinet

$1.00

Wall Mounting Rack enclosure Cabinets are designed to integrate wall mounting, which allows easy access to the network equipment:

  • Transparent glass front door
  • Removable side panels
  • Lockable on all sides

This rack cabinets series includes SKU of various depths
and also in this series are rack cabinets with additional Rack Units (heights).

SKU: HI-4U Categories: ,
Share:
Specification
Product structure
Product Type: Wall rack cabinet
Rack Size: Reliable 19″ international structure
Rack Units: 4U
Front Door: 5mm transparent glass  door
Door hinges with 130 degrees operation angle
Lockable door
Side Panels: Two sealed metal side panels
Removable side panels with plastic fasteners
Lockable Side panels
Back Panel: Sealed metal panel
Removable back Panel by screws
included: Rear heavy duty hinge for safe wall mounting



Product Material
Material: SPCC - high quality cold-rolled steel
Thickness: Mounting profile 2.0mm



Certificates
CE , ROSH



Product types:



Product Type: 4U Wall Rack Cabinet - 300mm Depth
SKU: HI-4U-300-B Color:  Black
SKU: HI-4U-300-G Color:  Gray
Dimensions (mm):  L 300 × W 550 × H 279
Weight: 8kg (Approximate)
Maximum Weight Capacity: 40kg


Note:
There can be a deviation of up to 3mm in the dimensions on website, product file specifications and actual dimensions.

Product Files
Product file - 4U Wall Rack Cabinet 300mm Depth - Black ColorView FileDownload File
Product file - 4U Wall Rack Cabinet 300mm Depth - Gray ColorView FileDownload File
