Luggar > 12U Wall Rack Cabinet

12U Wall Rack Cabinet

$1.00

Wall Mounting Rack enclosure Cabinets are designed to integrate wall mounting, which allows easy access to the network equipment:

  • Transparent glass front door
  • Removable back and side panels
  • Lockable front and side panels

This rack cabinets series includes SKU of various depths
and also in this series are rack cabinets with additional Rack Units (heights).

SKU: HI-12U Categories: ,
Share:
Specification
Product structure
Product Series: Wall Mounting Rack Cabinets
Rack Size: Reliable 19″ international structure
Rack Units: 12U
Front Door: 5mm transparent glass  door
Door hinges with 130 degrees operation angle
Lockable door
Side Panels: Two sealed metal side panels
Removable side panels with plastic fasteners
Lockable Side panels
Back Panel: Sealed metal panel
Removable back Panel by screws
Included: Rear heavy duty hinge for safe wall mounting
wire path
Can Be Added: 1pc Fan (fan size: 120*120*25 mm)
Shelves



Product Material
Material: SPCC - high quality cold-rolled steel
Thickness:  Mounting profile 2.0mm



Certificates
 CE , ROSH

Product types:

Product Type: 12U Wall Rack Cabinet - 500mm Depth
SKU: HI-12U-500-B Color: Black
SKU: HI-12U-500-G Color:  Gray
Dimensions (mm): L 500 × W 550 × H 635
Weight: 21kg (Approximate, without additional accessories)
Maximum Weight Capacity: 60kg



Product Type: 12U Wall Rack Cabinet - 600mm Depth

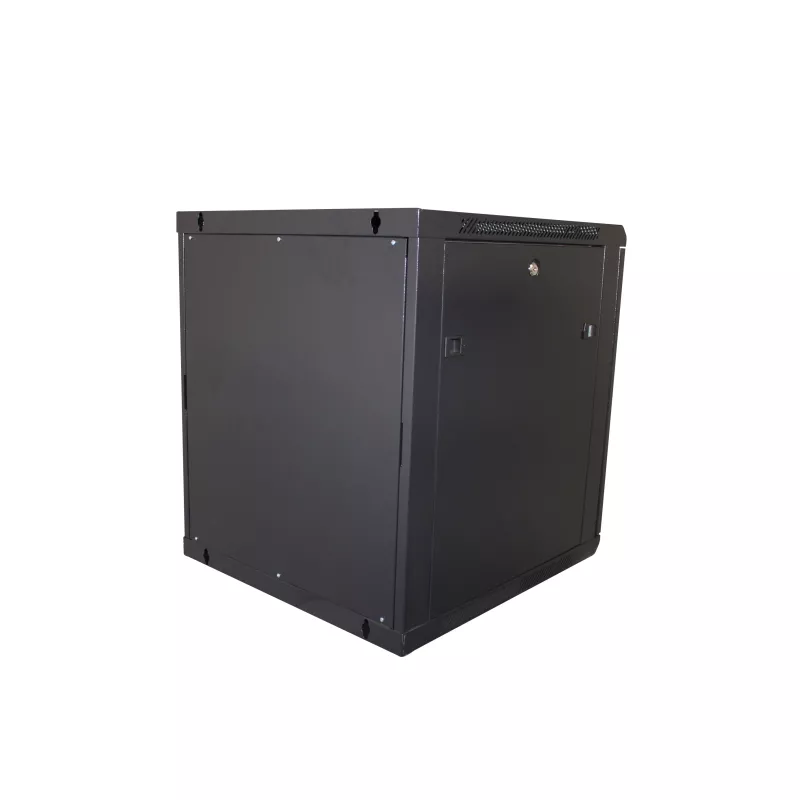

SKU: HI-12U-600-B Color:  Black
SKU: HI-12U-600-G Color:  Gray
Dimensions (mm): L 600 × W 550 × H 635
Weight: 22kg (Approximate, without additional accessories)
Maximum Weight Capacity: 60kg



Note: There can be a deviation of up to 3mm in the dimensions on website, product file specifications and actual dimensions.

Product Files
Product file - 12U Wall Rack Cabinet 500mm Depth - Black ColorView FileDownload File
Product file - 12U Wall Rack Cabinet 600mm Depth - Black ColorView FileDownload File
Product file - 12U Wall Rack Cabinet 500mm Depth - Gray ColorView FileDownload File
Product file - 12U Wall Rack Cabinet 600mm Depth - Gray ColorView FileDownload File
