Wall Mounting Rack enclosure Cabinets are designed to integrate wall mounting, which allows easy access to the network equipment:
This rack cabinets series includes SKU of various depths
and also in this series are rack cabinets with additional Rack Units (heights).
| Product structure | |
| Product Type: | Wall rack cabinet |
| Rack Size: | Reliable 19″ international structure |
| Rack Units: | 4U |
| Front Door: | 5mm transparent glass door |
| Door hinges with 130 degrees operation angle | |
| Lockable door | |
| Side Panels: | Two sealed metal side panels |
| Removable side panels with plastic fasteners | |
| Lockable Side panels | |
| Back Panel: | Sealed metal panel |
| Removable back Panel by screws | |
| included: | Rear heavy duty hinge for safe wall mounting |
| Product Material | |
| Material: | SPCC - high quality cold-rolled steel |
| Thickness: | Mounting profile 2.0mm |
| Certificates | |
| CE , ROSH |
| Product Type: | 4U Wall Rack Cabinet - 300mm Depth | ||
| SKU: | HI-4U-300-B | Color: | Black |

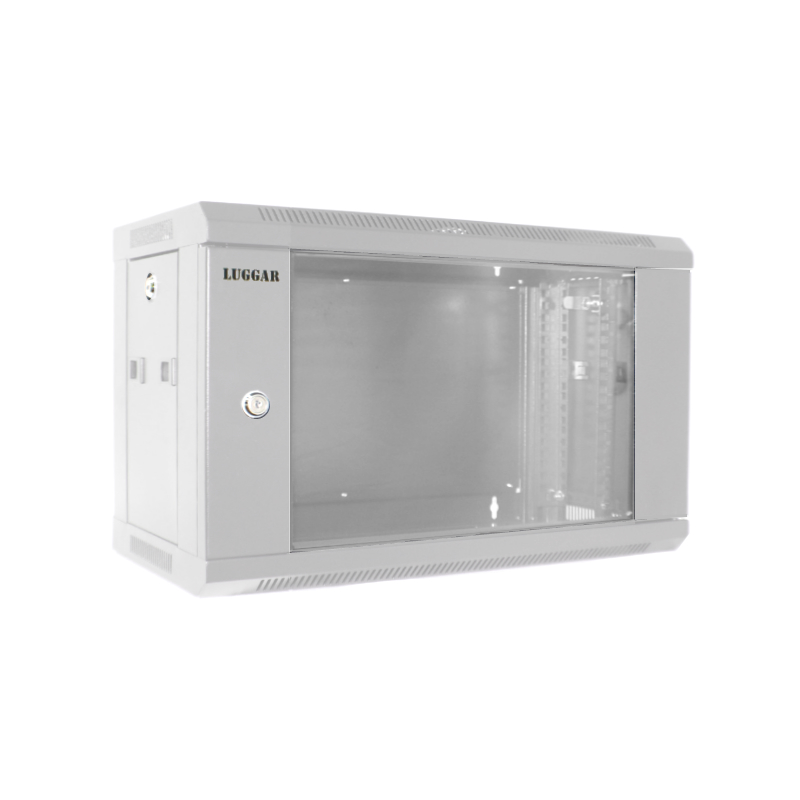

| SKU: | HI-4U-300-G | Color: | Gray |
| Dimensions (mm): | L 300 × W 550 × H 279 | ||
| Weight: | 8kg (Approximate) | ||
| Maximum Weight Capacity: | 40kg | ||
| Product Type: | 4U Wall Rack Cabinet - 400mm Depth | ||
| SKU: | HI-4U-400-B | Color: | Black |
| SKU: | HI-4U-400-G | Color: | Gray |
| Dimensions (mm): | L 400 × W 550 × H 279 | ||
| Weight: | 9kg (Approximate) | ||
| Maximum Weight Capacity: | 40kg | ||
| Product Type: | 4U Wall Rack Cabinet - 450mm Depth | ||
| SKU: | HI-4U-450-B | Color: | Black |
| SKU: | HI-4U-450-G | Color: | Gray |
| Dimensions (mm): | L 450 × W 550 × H 279 | ||
| Weight: | 9kg (Approximate) | ||
| Maximum Weight Capacity: | 40kg | ||
Note: There can be a deviation of up to 3mm in the dimensions on website, product file specifications and actual dimensions.
| Product file - 4U Wall Rack Cabinet 300mm Depth - Black Color | View File | Download File |
| Product file - 4U Wall Rack Cabinet 300mm Depth - Gray Color | View File | Download File |
