Luggar > 10U Combined Rack Cabinet – MB Series

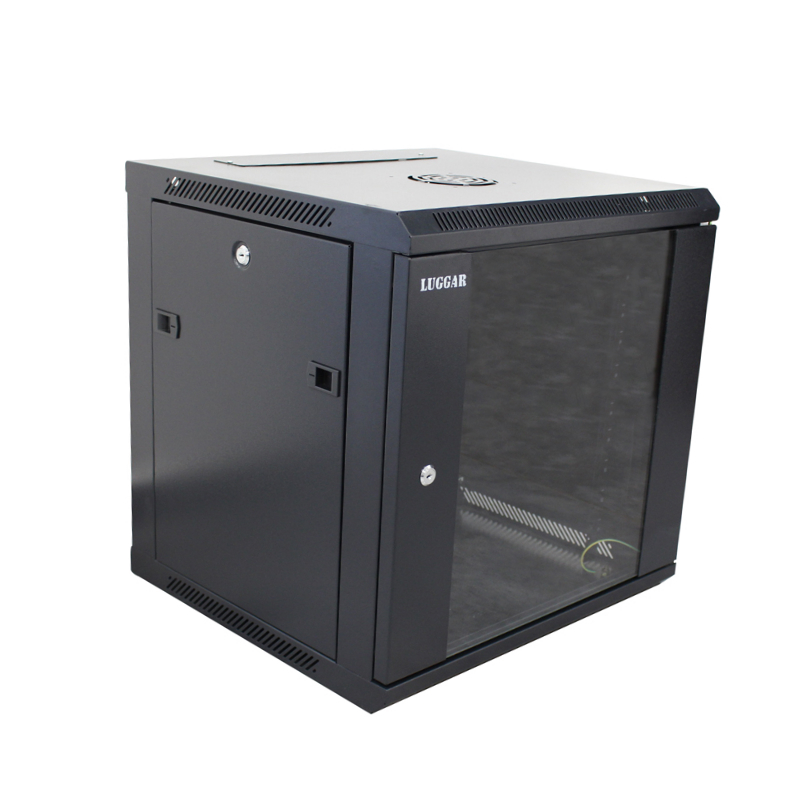

10U Combined Rack Cabinet – MB Series

$1.00

This series is unique because it enables the cabinet to be mounted on a wall or to be stationary on heavy castors.
This flexibility allows the cabinet to adapt its properties to each  installation environment.

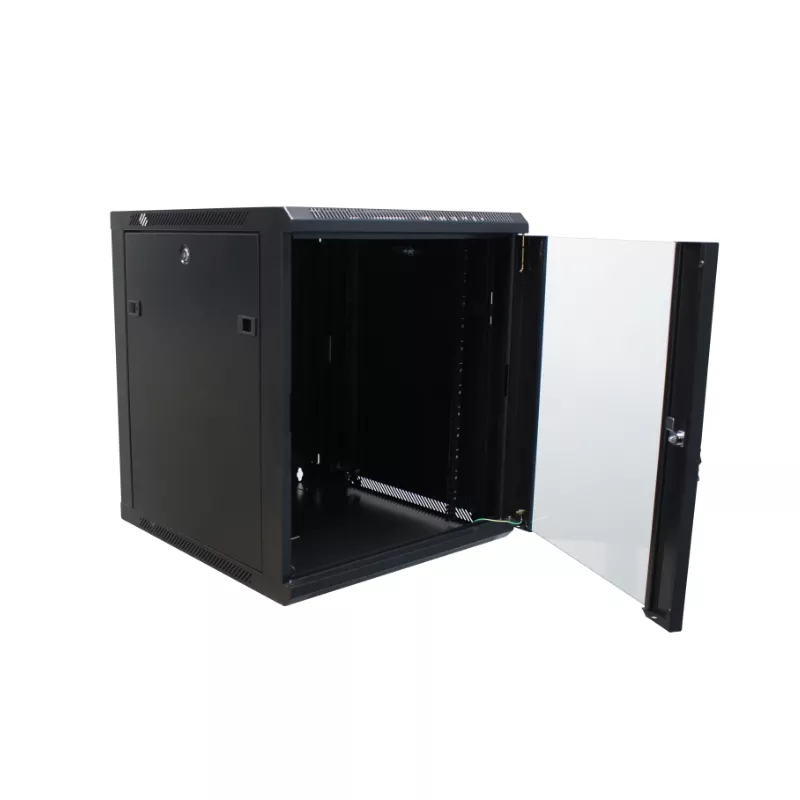

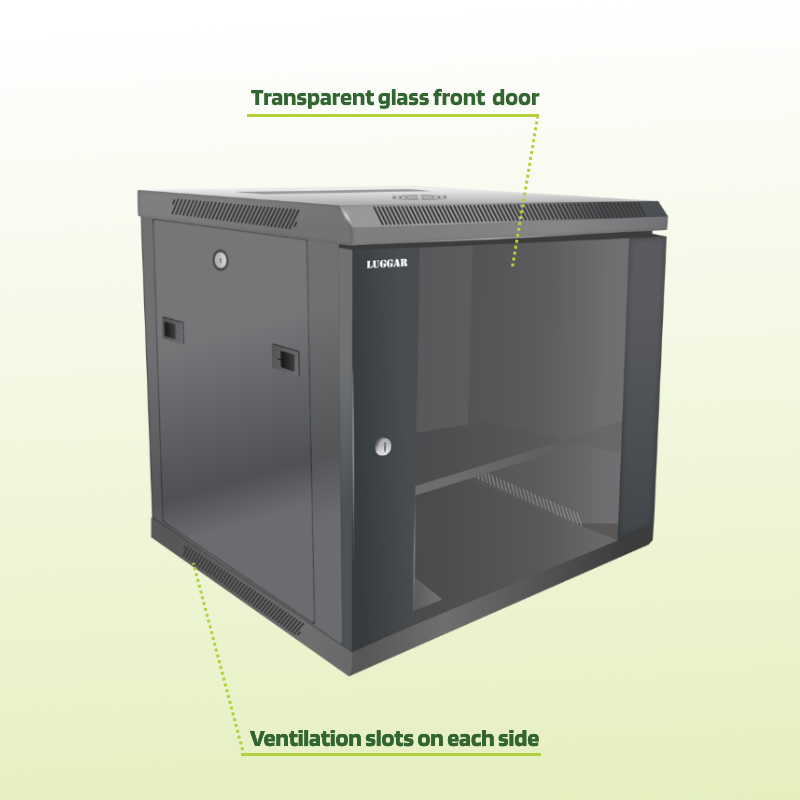

  • Transparent glass front door

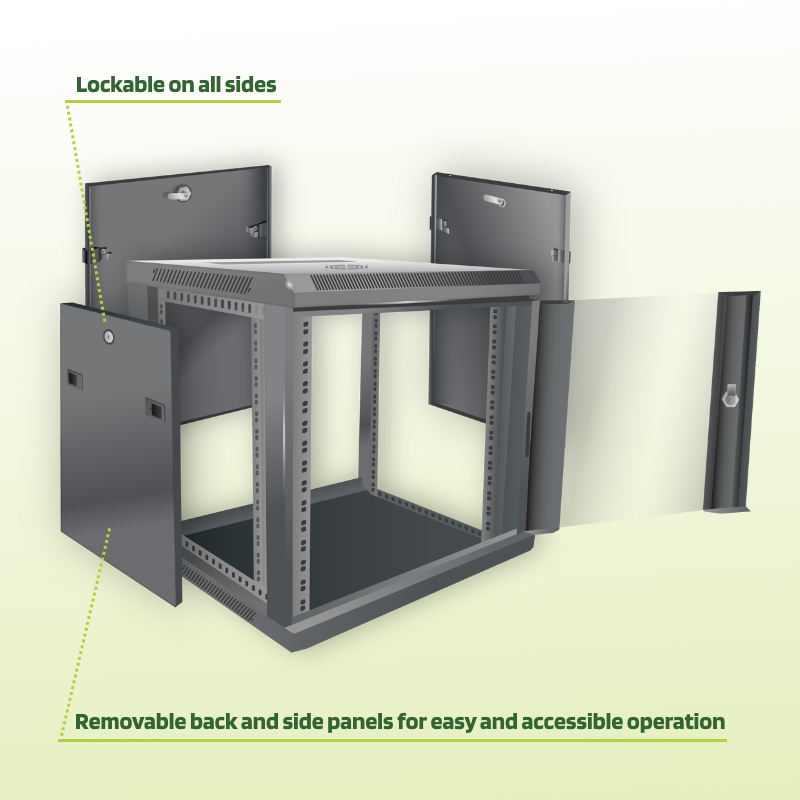

  • Removable back and side panels
  • Lockable front, back and side panel
  • Black color



Included:

  • four castors
  • two shelves

This MB series includes SKU of various depths and also there are cabinets with additional Rack Units (heights).

Share:
Specification
Product structure
Product Series: Combined Rack Cabinet - MB Series
Rack Size: Reliable 19″ international structure
Rack Units: 10U
Front Door:  Transparent glass  door
over 180 degrees of turning angle
Lockable door
Side Panels: Two sealed metal side panels
Removable side panels with plastic fasteners
Lockable Side panels
Back Panel: Sealed metal panel
Removable back panel with plastic fasteners
Lockable back panel
Included: Rear heavy duty hinge for safe wall mounting
4 x Castors
2 x Shelves
Can Be Added: 1pc Fan (fan size: 120*120*25 mm)
Shelves



Product Material
Material: SPCC - high quality cold-rolled steel
Thickness:  Mounting profile 2.0mm



Certificates
CE , ROSH



Product types:

Product Type: 10U - MG Series - 500mm Depth
SKU: HI-10U-500-MB Color:  Black
Dimensions (mm): L 500 × W 550 × H 556
Weight: 21kg (Approximate)
Maximum Weight Capacity: 60kg

Product Type: 10U - MG Series - 600mm Depth
SKU: HI-10U-600-MB Color:  Black
Dimensions (mm): L 600 × W 550 × H 556
Weight: 22kg (Approximate)
Maximum Weight Capacity: 60kg



Note: There can be a deviation of up to 3mm in the dimensions on website, product file specifications and actual dimensions.

Product Files
Product file - 10U - MB Series - 500mm Depth - Black ColorView FileDownload File
Product file - 10U - MB Series - 600mm Depth - Black ColorView FileDownload File
