Luggar > 10U Wall Rack Cabinet – MG Series

10U Wall Rack Cabinet – MG Series

$1.00

Wall Mounting Rack enclosure Cabinets are designed to integrate wall mounting, which allows easy access to the network equipment.

The sealed cabinets MG series – with sides panels, back panel and front door which are all made of sealed metal, discreetly keeping your equipment.

  • Sealed metal front door
  • Removable back and side panels
  • Lockable front and side panels

This MG series includes SKU of various depths and also in this series are rack cabinets with additional Rack Units (heights).

Share:
Specification
Product structure
Product Series: Wall Rack Cabinets - MG Series
Rack Size: Reliable 19″ international structure
Rack Units: 10U
Front Door: Sealed metal door
Door hinges with 130 degrees operation angle
Lockable door
Side Panels: Two sealed metal side panels
Removable side panels with plastic fasteners
Lockable Side panels
Back Panel: Sealed metal panel
Removable back panel by screws
Included: Rear heavy duty hinge for safe wall mounting
wire path
Can Be Added:  1pc Fan (fan size: 120*120*25 mm)
Shelves



Product Material
Material: SPCC - high quality cold-rolled steel
Thickness:  Mounting profile 2.0mm



Certificates
CE , ROSH



Product types:

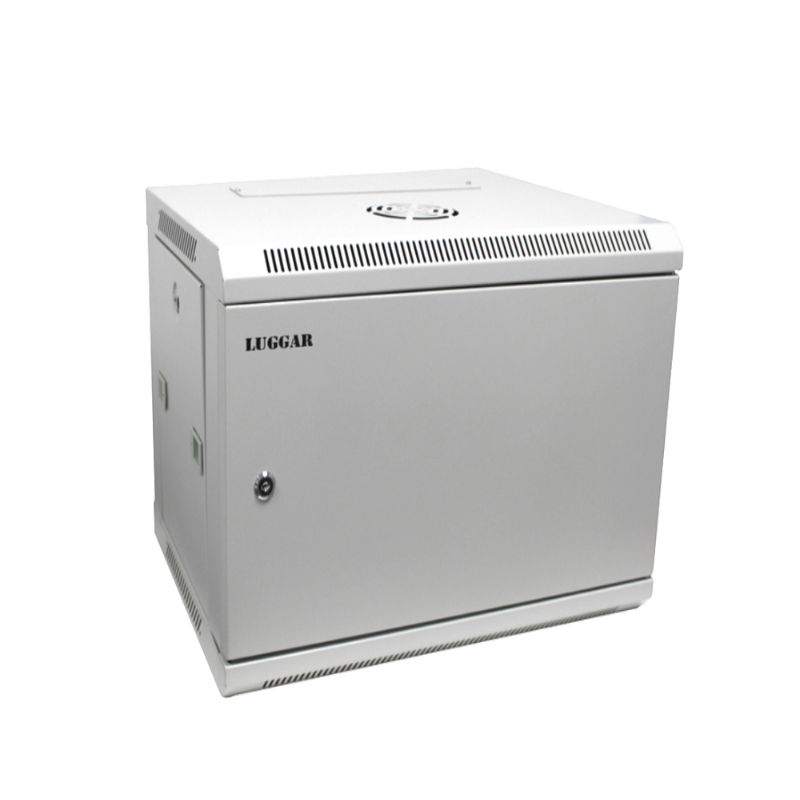

Product Type: 10U - MG Series - 400mm Depth
SKU: HI-10U-400-BMG Color:  Black
SKU: HI-10U-400-MG Color:  Gray
Dimensions (mm): L 400 × W 550 × H 546
Weight: 14kg (Approximate, without additional accessories)
Maximum Weight Capacity: 60kg

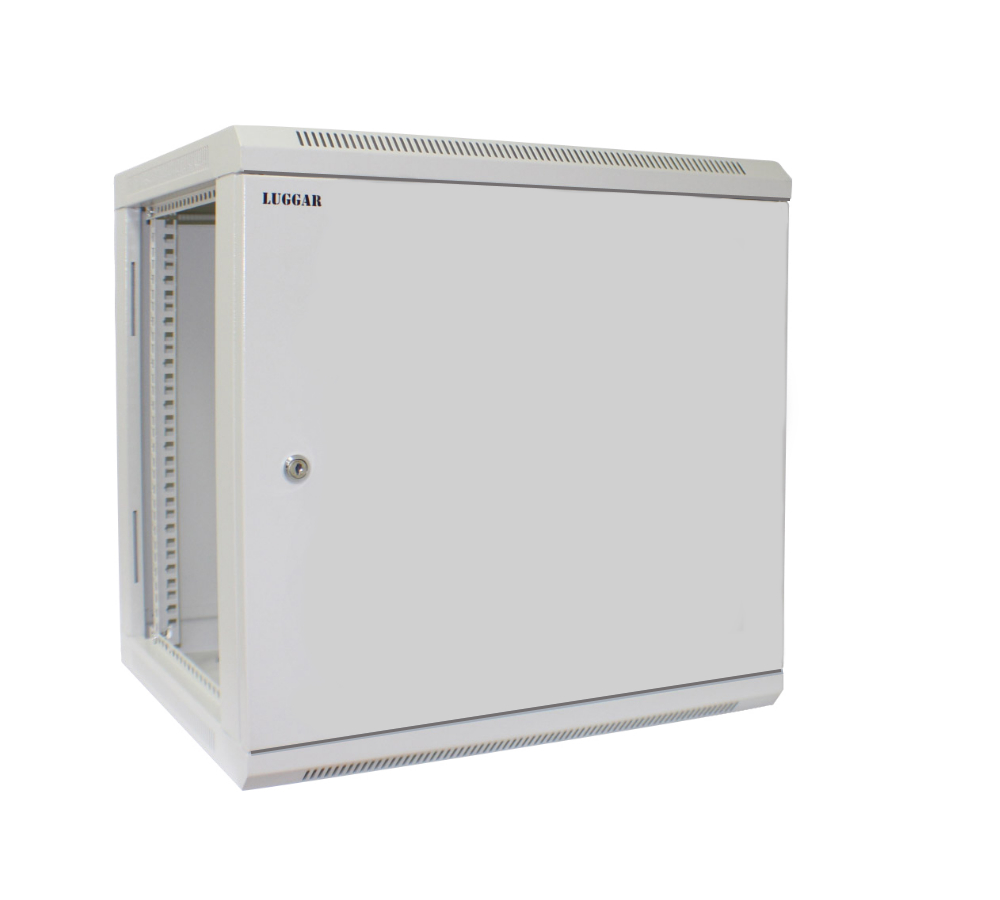

Product Type: 10U - MG Series - 500mm Depth
SKU: HI-10U-500-BMG Color:  Black
SKU: HI-10U-500-MG Color:  Gray
Dimensions (mm): L 500 × W 550 × H 546
Weight: 16kg (Approximate, without additional accessories)
Maximum Weight Capacity: 60kg

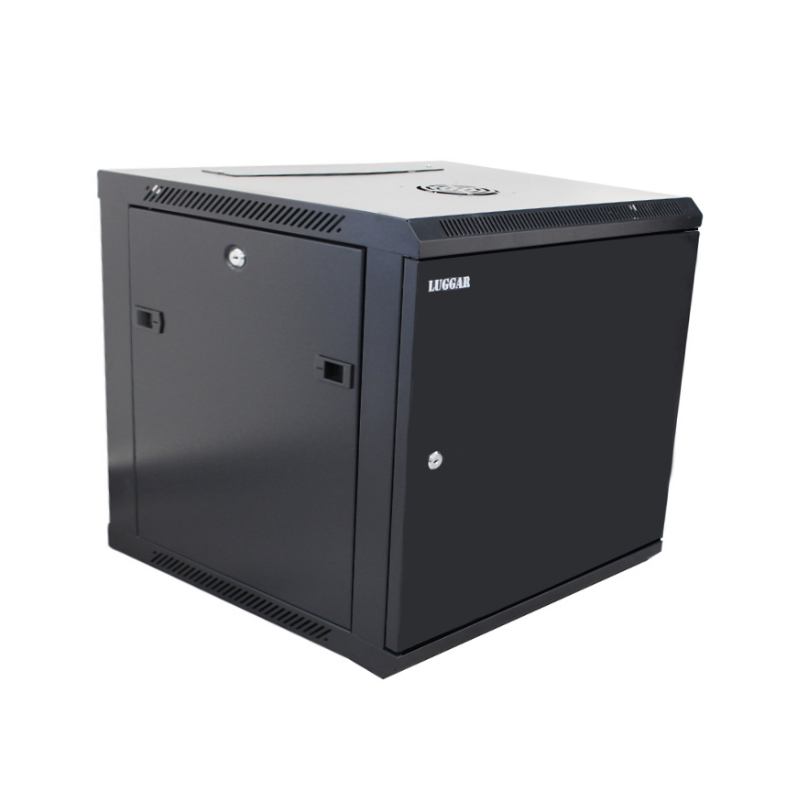

Product Type: 10U - MG Series - 600mm Depth
SKU: HI-10U-600-BMG Color:  Black
SKU: HI-10U-600-MG Color:  Gray
Dimensions (mm): L 600 × W 550 × H 546
Weight: 18kg (Approximate, without additional accessories)
Maximum Weight Capacity: 60kg

Note: There can be a deviation of up to 3mm in the dimensions on website, product file specifications and actual dimensions.

Product Files
Product file - 10U - MG Series - 400mm Depth - Black ColorView FileDownload File
Product file - 10U - MG Series - 500mm Depth - Black ColorView FileDownload File
Product file - 10U - MG Series - 600mm Depth - Black ColorView FileDownload File
Product file - 10U - MG Series - 400mm Depth - Gray ColorView FileDownload File
Product file - 10U - MG Series - 500mm Depth - Gray ColorView FileDownload File
Product file - 10U - MG Series - 600mm Depth - Gray ColorView FileDownload File
