Wall Mounting Rack enclosure Cabinets are designed to integrate wall mounting, which allows easy access to the network equipment.
The sealed cabinets MG series – with sides panels, back panel and front door which are all made of sealed metal, discreetly keeping your equipment.
This MG series includes SKU of various depths and also in this series are rack cabinets with additional Rack Units (heights).
| Product structure | |
| Product Type: | Wall rack cabinet – MG Series |
| Rack Size: | Reliable 19″ international structure |
| Rack Units: | 6U |
| Front Door: | Sealed metal door |
| Door hinges with 130 degrees operation angle | |
| Lockable door | |
| Side Panels: | Two sealed metal side panels |
| Removable side panels with plastic fasteners | |
| Lockable Side panels | |
| Back Panel: | Sealed metal panel |
| included: | Rear heavy duty hinge for safe wall mounting |
| wire path | |
| can be added: | Shelves |
| Product Material | |
| Material: | SPCC - high quality cold-rolled steel |
| Thickness: | Mounting profile 2.0mm |
| Certificates | |
| CE , ROSH |

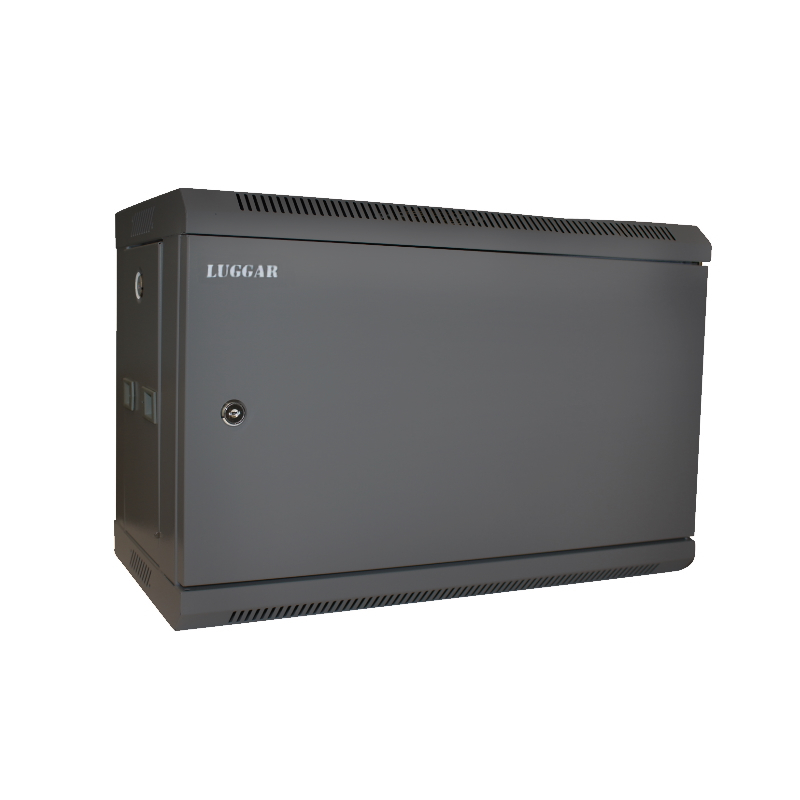

| Product Type: | 6U Wall Rack Cabinet - 300mm Depth | ||
| SKU: | HI-6U-300-BMG | Color: | Black |
| SKU: | HI-6U-300-MG | Color: | Gray |
| Dimensions (mm): | L 300 × W 550 × H 368 | ||
| Weight: | 10kg (Approximate, without additional accessories) | ||
| Maximum Weight Capacity: | 50kg | ||
| Product Type: | 6U Wall Rack Cabinet - 400mm Depth | ||
| SKU: | HI-6U-400-BMG | Color: | Black |
| SKU: | HI-6U-400-MG | Color: | Gray |
| Dimensions (mm): | L 400 × W 550 × H 368 | ||
| Weight: | 11kg (Approximate, without additional accessories) | ||
| Maximum Weight Capacity: | 50kg | ||
| Product Type: | 6U Wall Rack Cabinet - 450mm Depth | ||
| SKU: | HI-6U-450-BMG | Color: | Black |
| SKU: | HI-6U-450-MG | Color: | Gray |
| Dimensions (mm): | L 450 × W 550 × H 368 | ||
| Weight: | 11.5kg (Approximate, without additional accessories) | ||
| Maximum Weight Capacity: | 50kg | ||

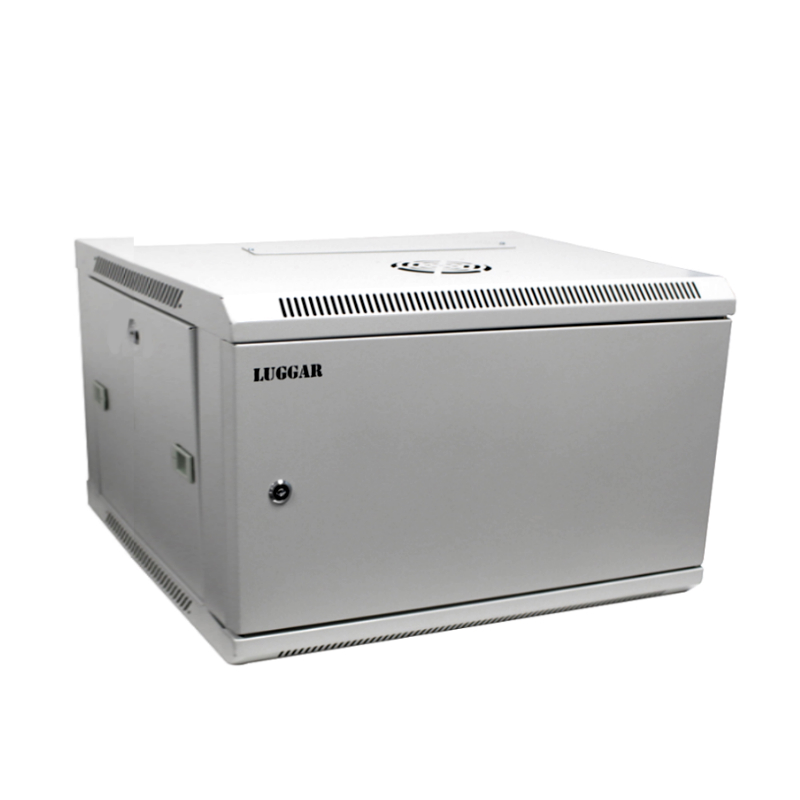

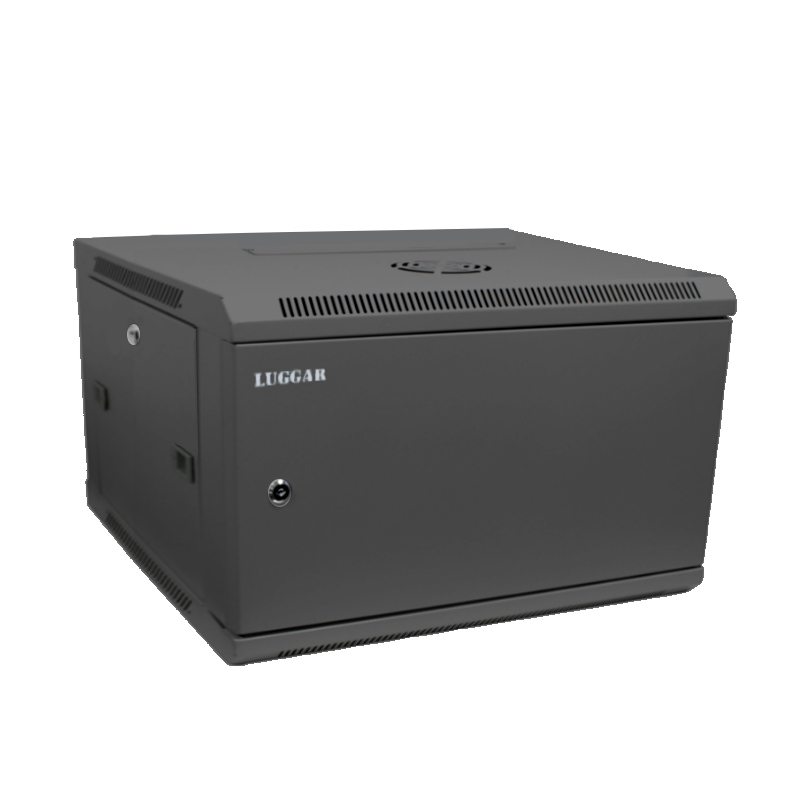

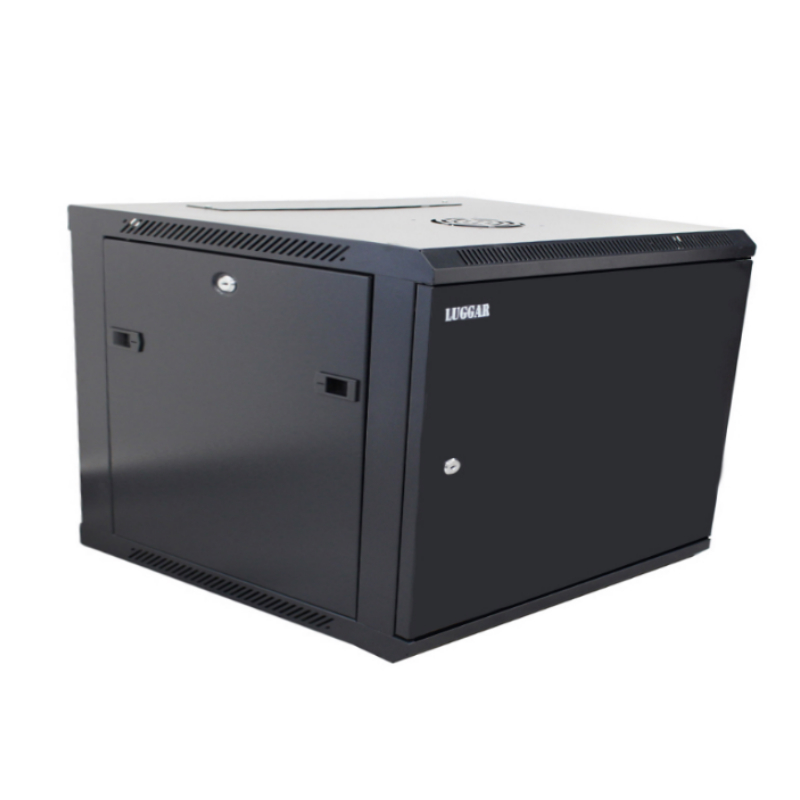

| Product Type: | 6U Wall Rack Cabinet - 500mm Depth | ||
| SKU: | HI-6U-500-BMG | Color: | Black |
| SKU: | HI-6U-500-MG | Color: | Gray |
| Dimensions (mm): | L 500 × W 550 × H 368 | ||
| Weight: | 12kg (Approximate, without additional accessories) | ||
| Maximum Weight Capacity: | 50kg0 | ||
| Product Type: | 6U Wall Rack Cabinet - 600mm Depth | ||
| SKU: | HI-6U-600-BMG | Color: | Black |
| SKU: | HI-6U-600-MG | Color: | Gray |
| Dimensions (mm): | L 600 × W 550 × H 368 | ||
| Weight: | 14kg (Approximate, without additional accessories) | ||
| Maximum Weight Capacity: | 50kg | ||
Note: There can be a deviation of up to 3mm in the dimensions on website, product file specifications and actual dimensions.
