• Maps and Tests up to 8 Network Drops at a Time
• Measures Distance in each Pair of CAT5 and CAT6 cable
• Checks for Correct Wiring in RJ45 Cables
• SCAN Feature Allows for Tracking Wire and Cable
• Built in Flashlight on Toner Wand
• Built-in speakers
• Built in Cable Calibration
• Long Battery Life
• Mainly designed for network installers.

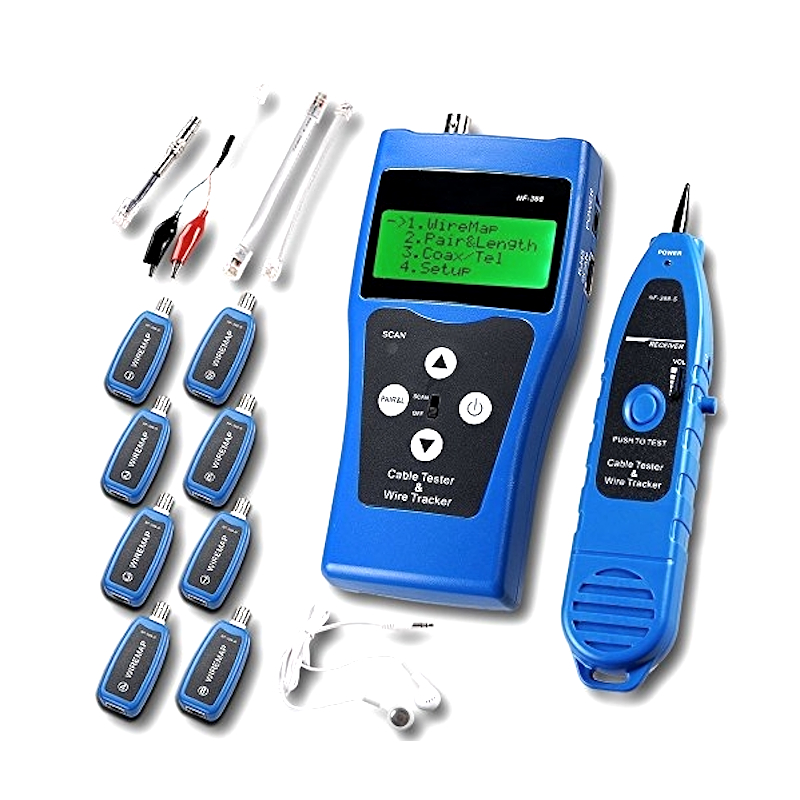

LAN & BNC Tester with 8 Network Wire Map Include Trecker

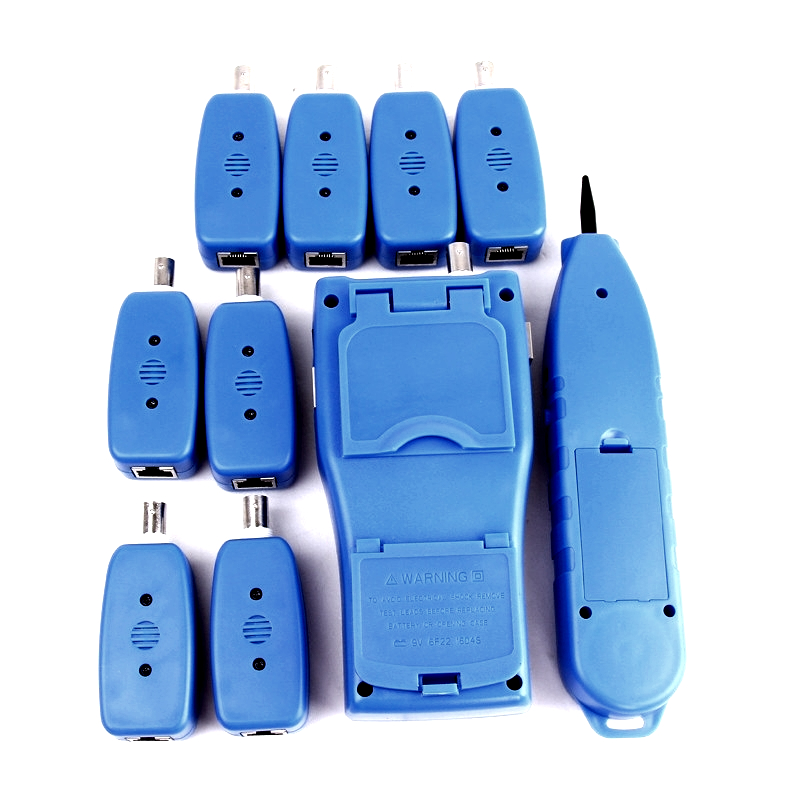

Includes eight remotes – Testing and mapping of eight wires at a time

Using the receivers built-In “Wire Map” feature technicians can see both the connected remote’s number, and verify that all wires in both RJ45 plugs are seated and wired correctly.

When a remote is connected to the same wire as the receiver, the remote will pulse an audible tone.

If the need arises to troubleshoot a problematic wire, the receiver’s “Pair & Length” feature will show the length of each connected pair. This makes finding a fault in a problematic cable a breeze. Once the receiver finds the distance to the fault, the SCAN feature is used.

The SCAN feature allows for tracing wires with the included inductive toner wand.

The receiver has four SCAN jacks including USB, BNC, RJ11/12, and RJ45 jack. When operated in SCAN mode, the receiver sends an inductive signal through these four jacks. The inductive wand will pick up this signal and emit an audible tone when in the vicinity of the cable, making it easy to follow and trace wires.
