Luggar > 30U Floor Standing Rack Cabinet

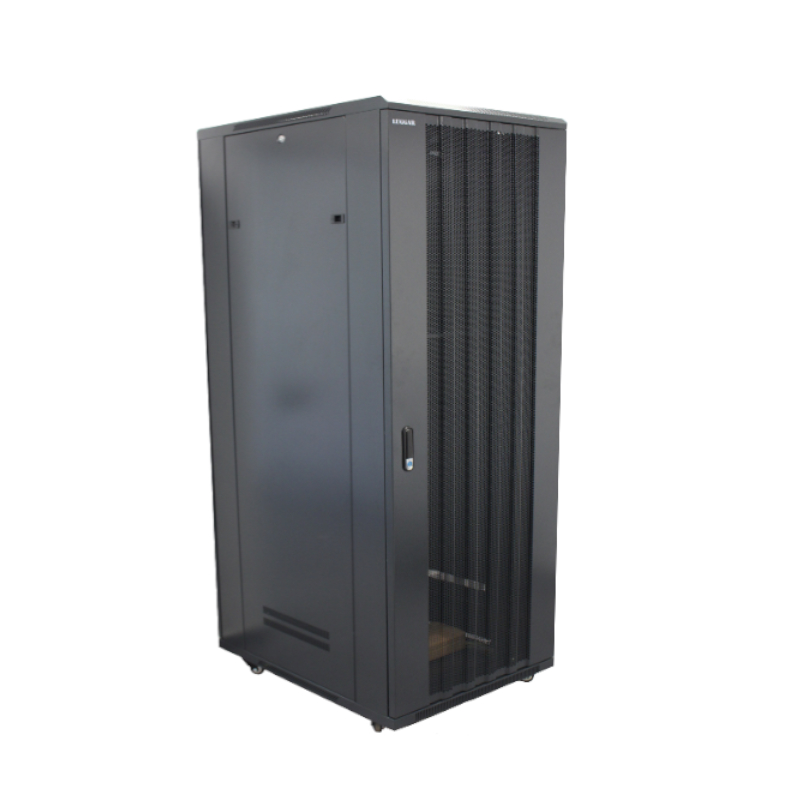

30U Floor Standing Rack Cabinet

$1.00

Floor standing rack network server data Cabinet with caster wheels are made from SPCC (cold-rolled steel) with maximum weight capacity of 700kgs.



Features:



  • Mesh front door & back door
  • Removable back and side panels
  • Lockable front, back and side panels



This rack cabinets series includes SKU of various depths
and also in this series are rack cabinets with additional Rack Units (heights).

SKU: HI-30U Categories: ,
Share:
Specification



Product structure
Product Type: Floor rack cabinet
Rack Units: 30U
Front Door: Mesh door
Door hinges with 130 degrees operation angle
Lockable door
Side Panels: Two sealed metal side panels
Removable side panels with plastic fasteners
Lockable Side panels
Back Door: Mesh door
Lockable door
included: 1 x Shelf
2 x Fans
4 x Caster wheels
can be added: Shelves
Fans (max 4 fans total)
4 x Short feets
Product Material
Material: SPCC - high quality cold-rolled steel



Certificates
CE , ROSH

Product types:



Product Type: 30U Floor Rack Cabinet - 500mm Depth
SKU: HI-30U-500
Color: Black
Dimensions (mm): L 500 × W 600× H 1501 (including casters)
Weight: 67kg (Approximate, without additional accessories)
Maximum Weight Capacity: 700kg



Product Type: 30U Floor Rack Cabinet - 600mm Depth
SKU: HI-30U-600
Color: Black
Dimensions (mm): L 600 × W 600× H 1501 (including casters)
Weight: 68kg (Approximate, without additional accessories)
Maximum Weight Capacity: 700kg



Product Type: 30U Floor Rack Cabinet - 800mm Depth
SKU: HI-30U-800
Color: Black
Dimensions (mm): L 800 × W 600× H 1501 (including casters)
Weight: 69kg (Approximate, without additional accessories)
Maximum Weight Capacity: 700kg



Note: There can be a deviation of up to 5mm in the dimensions on website, product file specifications and actual dimensions.
