17” LAN LCD KVM Switch 16 Ports


  • Front LCD Console ( keyboard, mouse, monitor 17” ).
  • 16 port CAT5 KVM.
  • Single Rail.
  • Total length: 611m – fit for 800-1200mm cabinet.

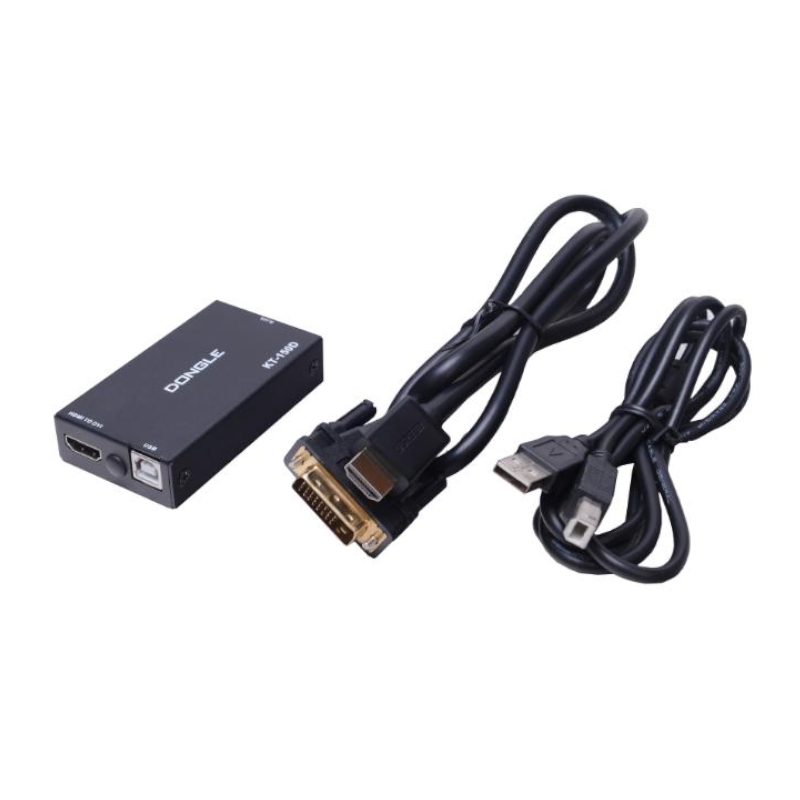

  • With VGA/DVI/HDMI different interface dongles.


LCD Monitor Features:


  • Front LCD Console (keyboard, mouse, monitor 17” ) + 16ports CAT5 KVM - very flexible and convenient for combination.
  • Support 9 different languages keyboard:
    American English, English, German, French, Spanish, Swiss, Turkish, Russian,Spanish.
  • IP optional ( IP card could be installed inside KVM module).
  • Cascade function support.
  • With VGA/DVI/HDMI different interface dongles.
  • Total length: 611mm, fit for 800-1200mm cabinet.


17” LCD Console Specification:


Type 17” LCD Console
LCD Monitor Screen 17” Screen, 4:3
Visible Square 337.920(H) × 270.336(V)
Resolution 1280*1024@60HZ(Opitmum)/1920*1200@60HZ(Max)
Support Color 16.7M (RGB 6 bit + Hi_FRC)
Contrast 1000 : 1 (Typ)
Backlight LED
Pixel Pitch 0.264x0.297mm
LEDMTBF 100,000 hours
Input power 12V
Keyboard (demountable design) Keyboard 100Keys, detachable (9 different languages for choose)
Compatible IBM/AT Microsoft Windows9, Me/NT/2000/XP, WIN7, Server2003, WIN8, WIN10
Port Standard PS/2; USB
Using life >1,000,000 Times
Mouse Type Touch Screen
Port Standard PS/2
X/Y Resolution >1000dots/inch, (40x40/mm)
Using life >1,000,000 Times
Installation Dimension (mm) 407 x 445 x 45
Weight 6.15kg


KVM Module Specification:


Computer Connection Direct Connects 16
Maximum Connects 256
CPU Port Selection OSD Menu, Front panel buttons, Hot Key, IP Remote Control (Optional)




Console Connector DB 37PIN
PC Connector Monitor, Keyboard/Mouse Switch Module 16 x VGA /DVI/HDMI, 16 x USB

OR 16 x PS/2

Switch Module Port 16 x RJ45
Power 1 x DC Jack
Network Port 1 x RJ45 (Optional)
Key Switch Connection Port Selection KVM Operation Panel Digital keys
KVM Reset KVM Operation Panel Function Keys
IP Module Reset 1 x semi-embedded key
IP Module Default 1 x semi-embedded key
LED’s Selected Nixie Tube LED Display
Online 16 x Red
IP Network 1 x Green, 1 x Orange
Analog Mode Keyboard / Mouse USB, PS/2
Resolution (Max) 1920 x 1200 @ 60HZ Local & Remote
Scan time interval 3, 5, 10, 15, 20, 30, 40, 60s (3s by default)
Operating Environment Operating temperature -10-50˚C
Storage temperature -20-60˚C
Humidity 0-80%RH, No Condensation
Physical Properties Housing Metal
Dimension (mm) 148.4 x 445 x 45
Weight 3.80kg
