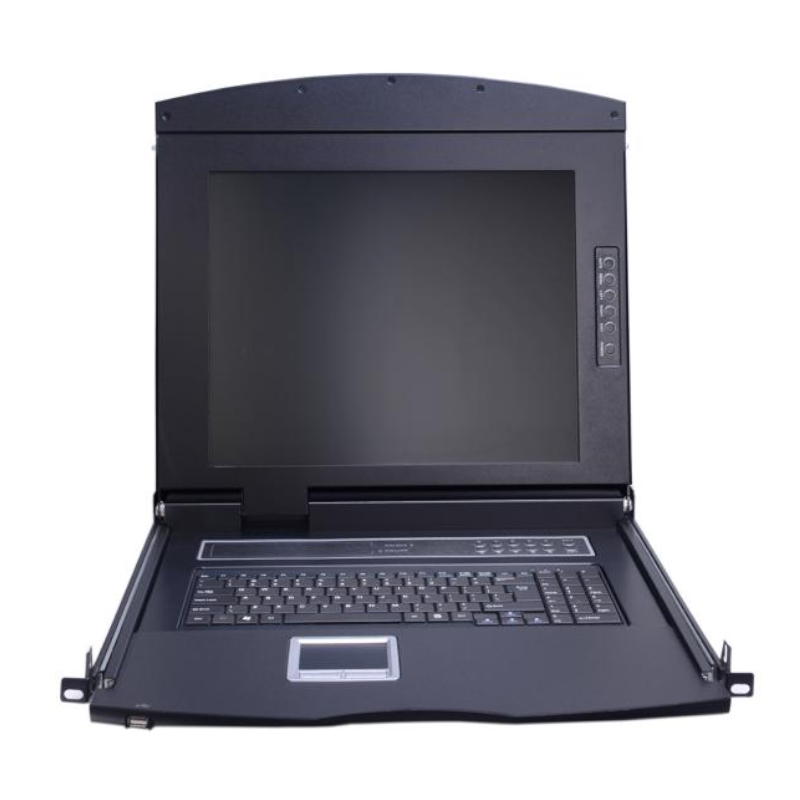

17” HDMI LCD KVM Switch 16 Ports


  • Front LCD Console ( keyboard, mouse, monitor 17” ).
  • 16 port HDMI KVM.
  • Single Rail.
  • Total length: 611m – fit for 800-1200mm cabinet.
  • Single USB console control 16HDMI interface computer and two additional USB device.


LCD Monitor Features:


  • Front LCD Console (keyboard, mouse, monitor17” )+ 16 port HDMI KVM - very flexible and convenient for combination.
  • Keyboard is with demountable design, with 9 different languages:
    American, English, German, French, Spanish, Swiss, Turkish, Russian, Italian.
  • Extra USB mouse interface.
  • Support 1080p resolution.
  • Total length: 611m; fit for 800-1200mm cabinet.


HDMI KVM Module Features:


  • Single USB console control 16HDMI interface computer and two additional USB device
  • Supports USB TYPE A interface type keyboard and mouse device
  • HDMI LCD Console resolution in Optimum:1920x1080@60Hz
  • KVM module resolution in Max: 4K@30HZ(3840x2610@30HZ
  • Switch the computer through the front panel buttons, keyboard hotkeys and screen menu (OSD)
  • Connect to the controlled device for BIOS-level access without worrying about the risk of viruses and Trojans
  • The controlled computer does not need to install any software and drivers, and the controlled computer directly recognizes KVM.
  • Upgrade remote network control mode by extending IP BOX
  • Support OSD to set user login mode and increase KVM login security requirements
  • Support widescreen resolution
  • Support DDC communication to adapt to different graphics devices
  • Auto scan function monitors all computer operations
  • Support for cross-platform operations - Windows, Linux, Mac*, and Sun*


17” High-Definition Monitor Specification:


Type 17.3” Wide-Screen LCD Console
LCD Monitor Screen 17.3” Screen, 16:9
Visible Square 381.888(H) x 214.812(V)
Resolution 1920*1080 @60HZ
Support Color 16.7M(RGB 6-bit data+ HiFCR data)
Contrast 600 : 1 (Typ)
Back light LED
Pixel Pitch 0.1989(per one triad) x 0.1989
LED MTBF 100,000 hours
Input power 12V
Keyboard (demountable design) Keyboard 100Keys, detachable (9 different languages for choose)
Compatible IBM/AT Microsoft Windows9, Me/NT/2000/XP, WIN7, Server2003, WIN8, WIN10
Port Standard PS/2; USB
Using life >1,000,000 Times
Mouse Type Touch Screen
Port Standard PS/2
X/Y Resolution >1000dots/inch, (40x40/mm)
Using life >1,000,000 Times
Installation Dimension (mm) 407 x 445 x 45
Weight 8.5kg


KVM Module Specification:


Type 16Port
Computer Connection 16
Port Selection OSD Menu, Front panel switches, Hot Key




Console Connector Monitor 1 x HDMI Female
Keyboard 1 x USB Type A Female
Mouse 1 x USB Type A Female

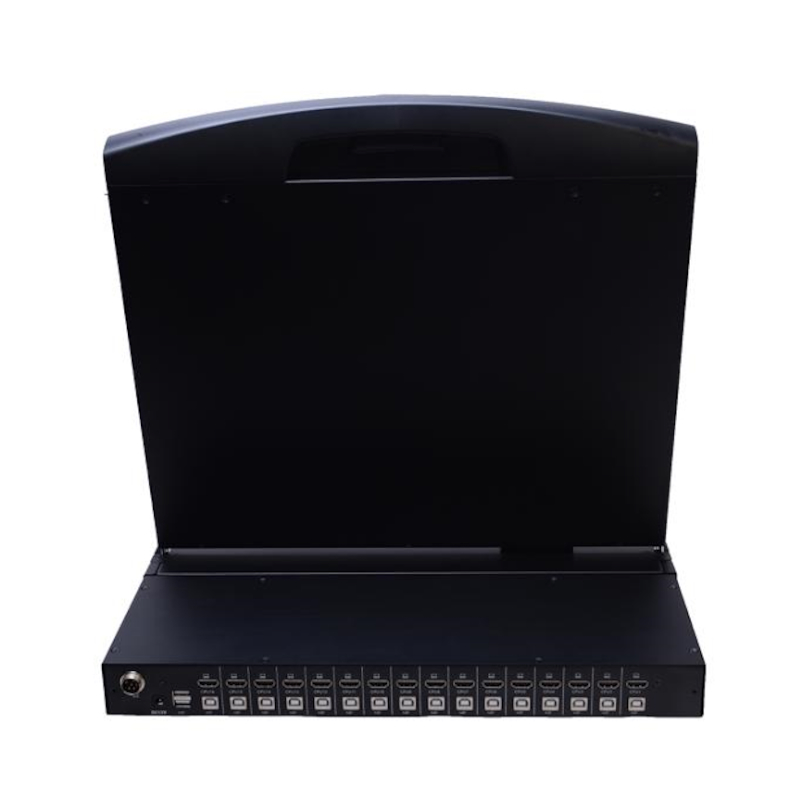

PC Connector Monitor 16 x HDMI Female
Mouse/Keyboard 16 x USB TYPE B Female
Power Power Supply 1 x DC Jack
Key switch Connection Port Selection 16 x keys
KVM Switch Reset 1 x Semi-embedded keys
LED Instruction Selected 16 x Green
Online 16 x Red
Simulation Method Keyboard & Mouse USB
Max Resolution Video 4K@30HZ (3840*2610@30HZ)
Scan interval 3, 5, 10, 15, 20, 30, 40, 60 seconds(Default 3 Seconds)

Operating Environment

Operating temperature 0-50℃
Storage temperature -20-60℃
Humidity 0-80%RH,No Condensation

Physical Properties

Housing metal
Dimensions (mm) L 432 x W 155 x H 44
Product weight:(kgs) 3.88 Kg
