CAT8 S/FTP Lan Cables
CAT8
CAT8 S/FTP Lan Cables - Image 3
CAT8 S/FTP Lan Cables - Image 4
CAT8 S/FTP Lan Cables - Image 5
Note: All pictures shown are illustration purpose only. Actual product may vary due to product enhancement.

CAT8 S/FTP Lan Cables

$1.00

CAT8 S/FTP 2x4x23AWG Bare Copper 568-B Patch Cord

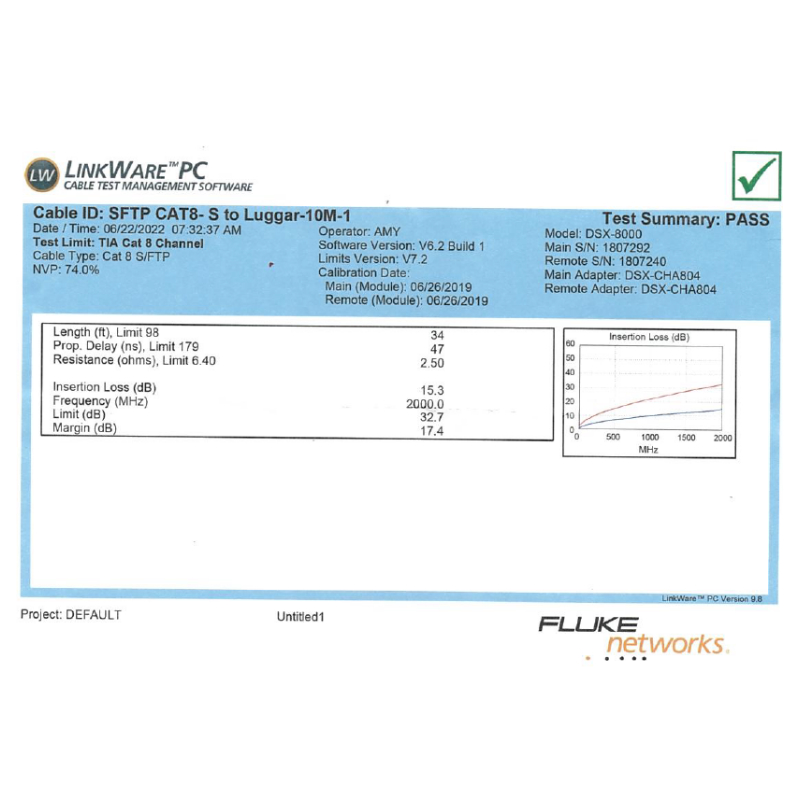

  • Pass Fluke Test (see below)
  • CAT8 Shielded Gold Connectors with Yellow Insert Color
  • PVC Jacket
  • Pure Copper Cable
  • 23AWG, Copper


Application:

  • Primary(Campus), Secondary(Riser), Tertiary(Horizontal)
  • IEEE802.3 (up to):  10 Base-T ; 100 Base-T ; 1000 Base-T ; 10G Base-T ; 40G Base-T
  • IEEE802.5 (up to):  16Mbps ; RDSI/ISDN; 100 Mbps TPDDI; 155 Mbps ATM
SKU: CAT8 Categories: , ,
Share:
Specification
Electrical Characteristics 20℃
Resistance unbalance ≤ 2%
Insulation resistance ≥150 MΩ/km
Capacitance 56pF/m
Capacitance unbalance ≤70 pF/m
Characteristic impedance 1-600MHz:(100±25) Ω
Nominal velocity of ≥Approximate 62%
Propagation delay ≤537 ns/30m @ 2000MHz
Delay skew Nominal 4.2 ns/30m, 1-2000 MHz
Test voltage (DC, 1 min) >1000v



Product types:

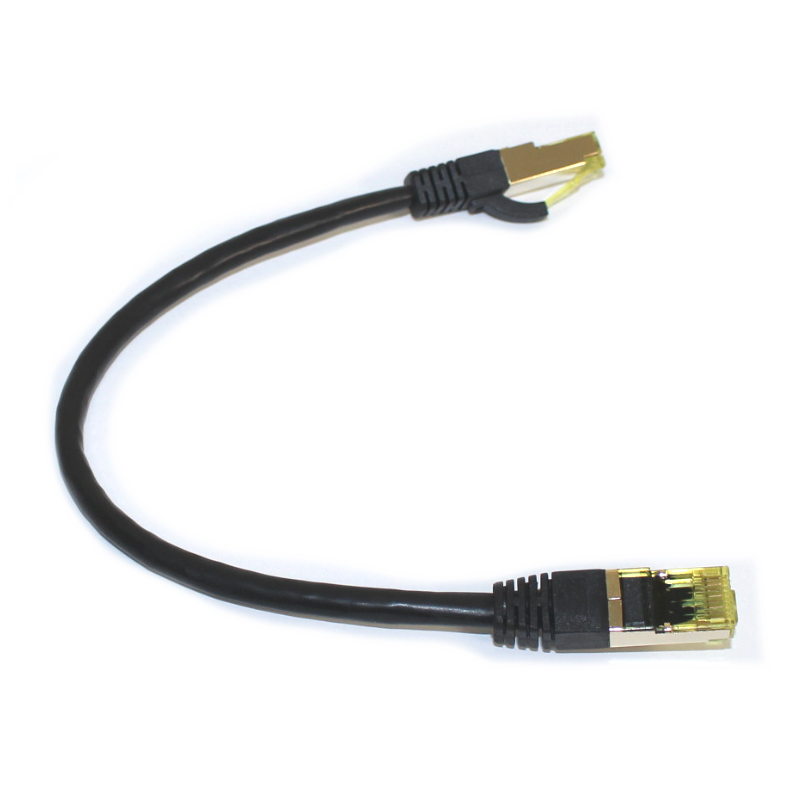

CAT8-025 CAT8 S/FTP Lan Cables - 0.25m
CAT8-050 CAT8 S/FTP Lan Cables - 0.5m

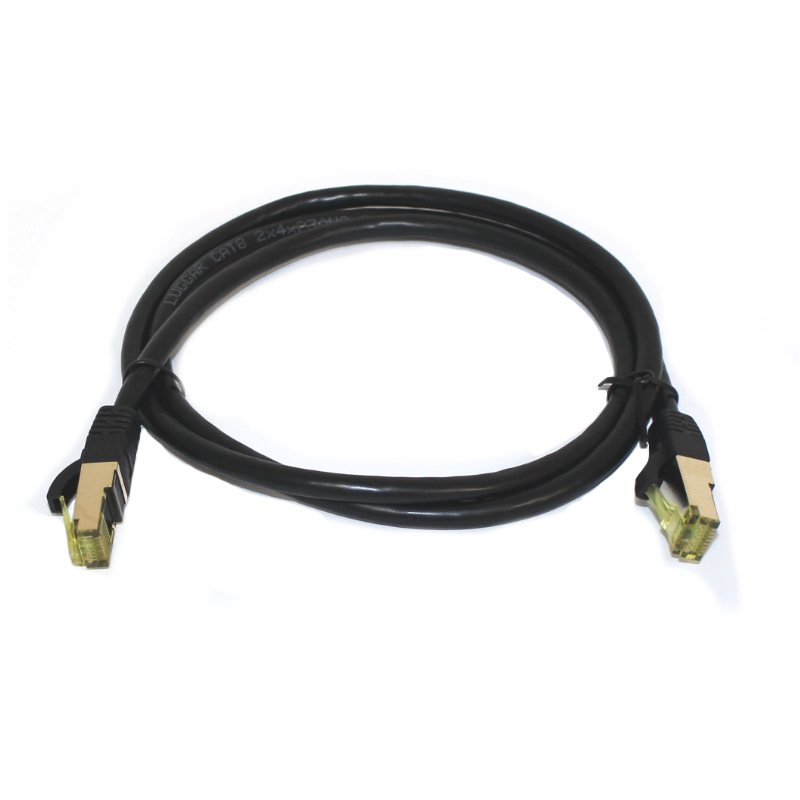

CAT8-1 CAT8 S/FTP Lan Cables - 1m
CAT8-2 CAT8 S/FTP Lan Cables - 2m
CAT8-3 CAT8 S/FTP Lan Cables - 3m

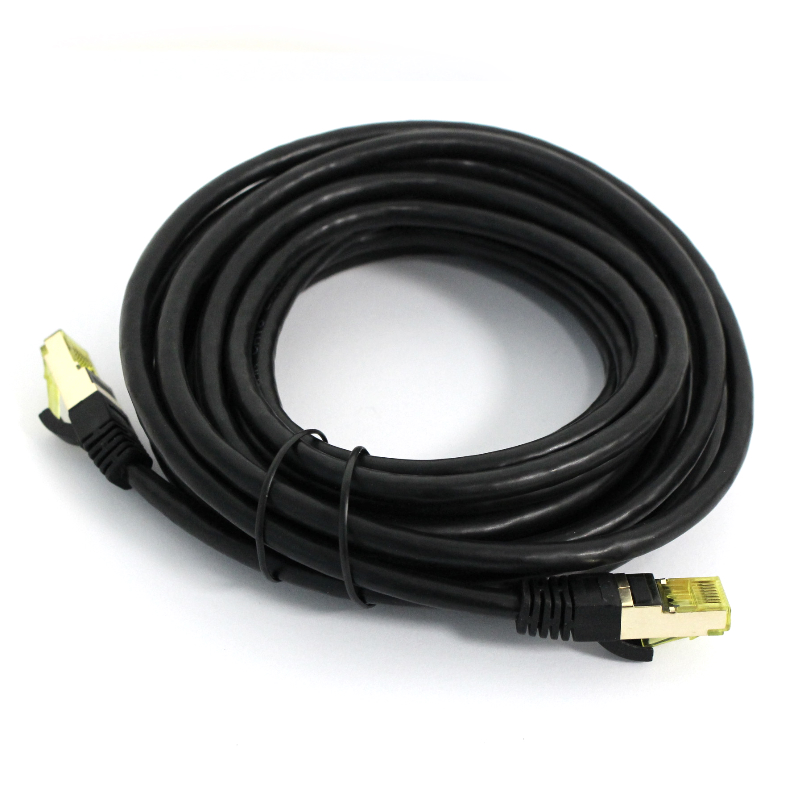

CAT8-5 CAT8 S/FTP Lan Cables - 5m

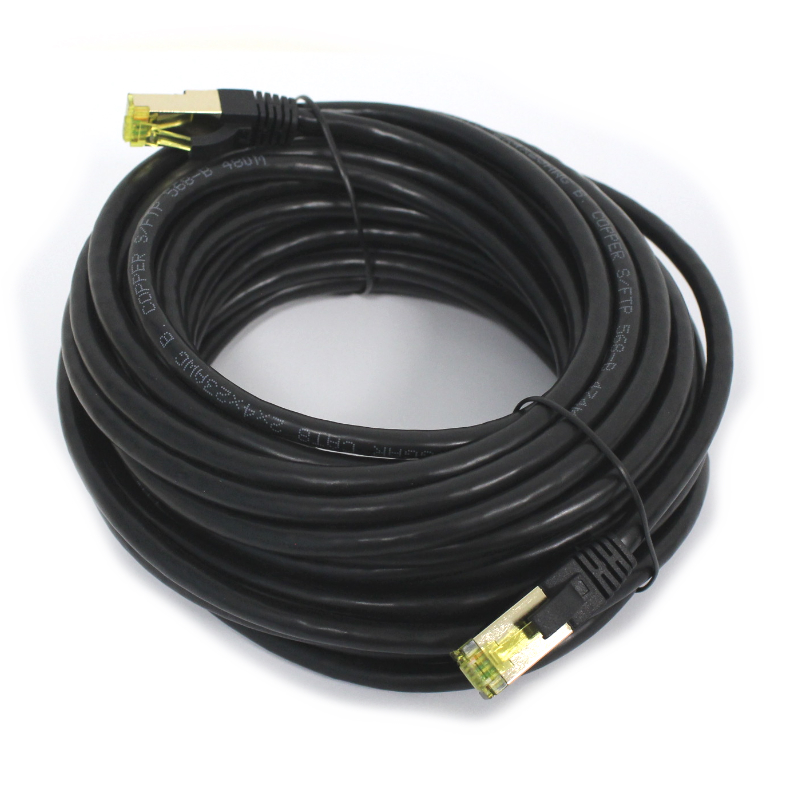

CAT8-10 CAT8 S/FTP Lan Cables - 10m
CAT8-15 CAT8 S/FTP Lan Cables - 15m
CAT8-20 CAT8 S/FTP Lan Cables - 20m
Product Files
Product fileView FileDownload File
Product full specification file View FileDownload File
Fluke Test certification1View FileDownload File
